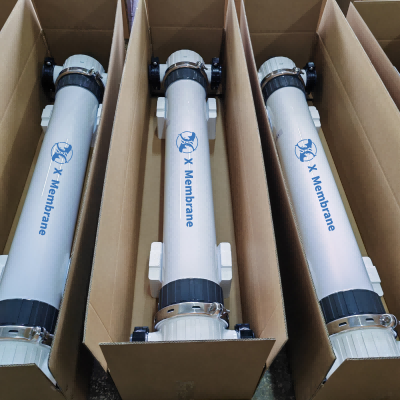

Toray HFUG2020AN Equivalent X UF Membrane
X-HFUG-2020AN replacement for Toray HFUG2020AN Ultrafiltration Membrane Overview.
This filtration mode gives ultrafiltration membranes the advantages of easy operation and low energy consumption.
Item No :
X-HFU2022NOrder(MOQ) :
1Payment :
TransferColor :
whiteShipping Port :
ShanghaiLead Time :
7-10daysToray HFUG2020AN Equivalent X UF Membrane
Product description;
Hollow fiber (HF) pressure ultrafiltration (UF) membrane modules are made of PVDF (polyvinylidene fluoride), the most advanced hollow fiber membrane material with high mechanical strength and chemical stability.
|
Nominal aperture |
0.01mm |
|
Design flux |
15 cubic meters per hour |
|
Maximum feed temperature |
40℃（104℉） |
|
Maximum feed pressure |
300kpa |
|
Maximum backwash flow |
16.8 cubic meters per hour |
|
Nominal MWCO |
150,000large |
|
pH range filtration |
1-10 |
|
pH range cleaning |
0-12 |
|
Weight full of water |
92kg(203lbs) |
Conditions of Use:
·Maximum water inlet pressure: 300KPa (43.5psi)
·Maximum differential pressure across membrane: 0-200KPa (0-29psi)
·Operating temperature range: 1-40℃(34-104℉）
·PH range: filtration 1-10; chemical cleaning 0-12
|
X Hollow-fiber Membrane Module Specifications
|
||
|
Module Part Number |
X-HFUG2020AN |
|
|
Nominal Pore Size|μm |
0.01 |
|
|
Membrane Material |
PVDF |
|
|
Outer Membrane Surface Area|㎡（ft²)
|
90 (969)
|
|
|
Maximum Feed water Flow |m³/h (gpm) |
15 (66)
|
|
|
Maximum Backwash Flow |m³/h (gpm) |
16.8 (74)
|
|
|
Maximum Air Flow|Nm³/h (scfm) |
9.0 (5.3)
|
|
|
Maximum Inlet Pressure|kPa (psi) |
300 (43.5)
|
|
|
Maximum Backwash Pressure|kPa (psi) |
300 (43.5
|
|
|
Normal Operating Trans-membrane Pressure|kPa (psi)
|
0–200 (0–29)
|
|
|
Dimensions and Weight |
||
|
Diameter |mm (in) |
216 (8.5)
|
|
|
Weight |
Full of Water|kg (lbs) |
92 (203) |
|
After Draining|kg (lbs) |
49 (108) |
|
Product advantages:
X PVDF hollow fiber membrane modules are used in various types of water treatment and can effectively remove microorganisms such as suspended solids and germs. Hollow fiber (HF) pressure ultrafiltration (UF) membrane modules are made of PVDF (polyvinylidene fluoride), the most advanced hollow fiber membrane material with high mechanical strength and chemical stability. The filtering mode is external pressure type and full volume filtering method. This filtration mode gives ultrafiltration membranes the advantages of easy operation and low energy consumption.
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
Address : No. 68-16, Shijiu Lake North Road, Chunxi Town, Gaochun District, Nanjing City, Jiangsu Province, China 210000
